Trouble Diagnostics When Using GDS: Notes
- The body control module can diagnose by using the GDS more quickly.
The BCM communicates with the GDS and then reads the input/output value and drives the actuator.
- To diagnose the BCM function, select the menu of model and body control module.
- To consult the present input/output value of BCM, "Current DATA". It provides information of BCM input/output conditions of power supply, turn signal/brake lamp, headlamp, door, locks, outside mirror, wiper, auto-light and transmitters etc.

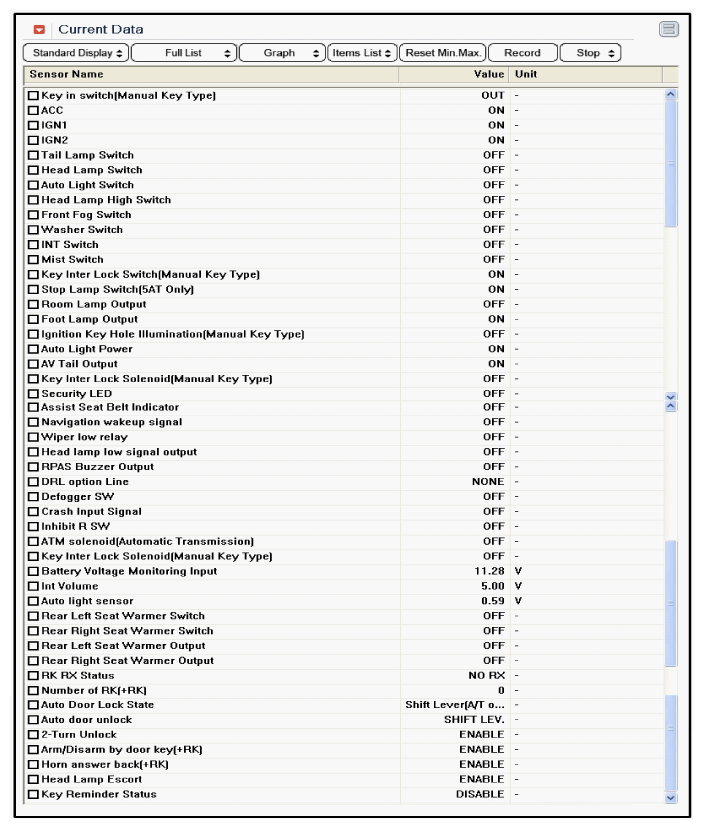

- BCM Service data

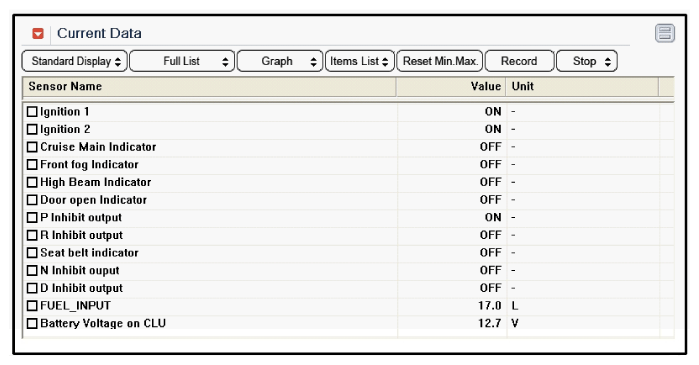

- CLU(Cluster) Service data

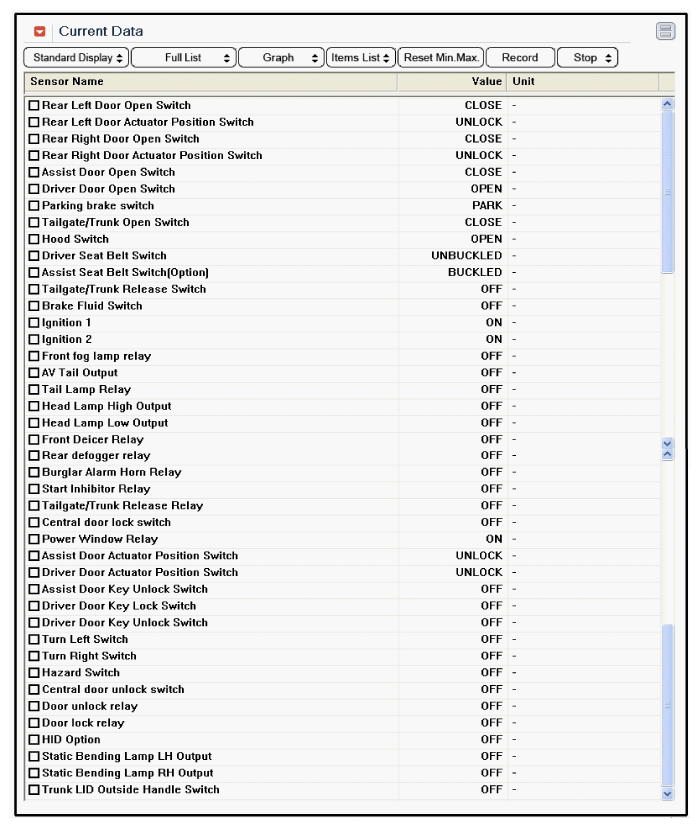

- SJB(Smart junction box) Service data

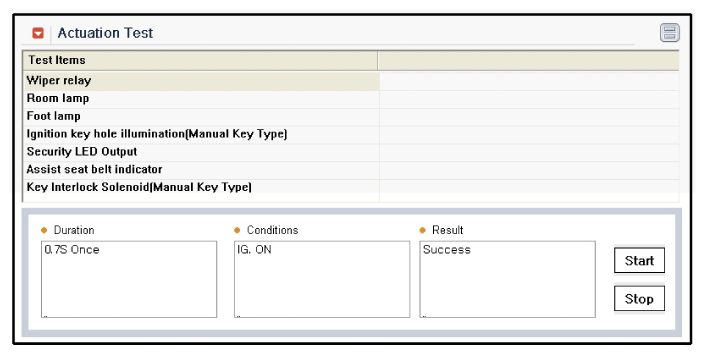

- To perform compulsory operation on BCM input factors, select "ACTUATION TEST".
