2016 Kia Optima EXFACTORY OEM SERVICE PROCEDURE
Components And Components Location: Component
WARNING: This page is about a different variant/trim than selected.

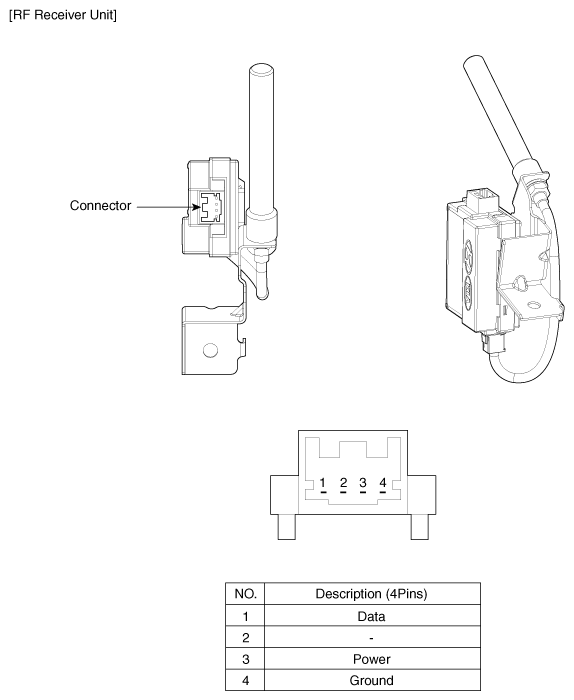

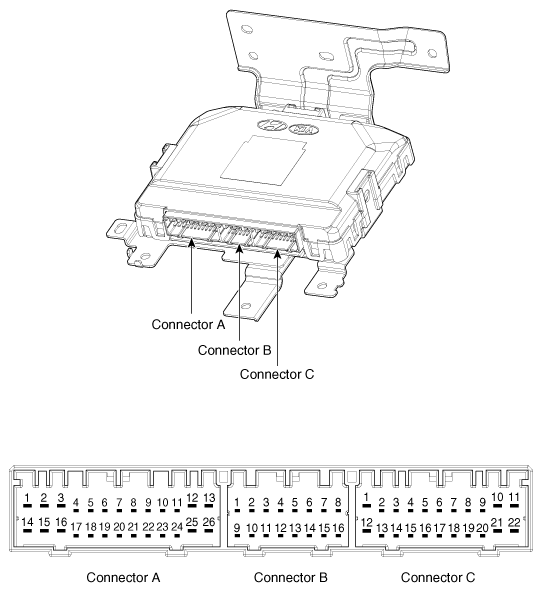

CONNECTOR PIN SPECIFICATION
| No. | Connector A (26pin) | Connector B (16pin) | Connector C (22pin) |
|---|---|---|---|
| 1 | V_BAT load | C_CAN low | SSB illumination ground |
| 2 | - | C_CAN high | Immobilzer indicator |
| 3 | Power ground1 | - | - |
| 4 | IGN1 | Stop lamp fuse | Interior antenna #2 power |
| 5 | IGN1 relay | Brake switch | Interior antenna #1 power |
| 6 | ACC | Immobilizer antenna power | - |
| 7 | IGN2 | - | - |
| 8 | SSB switch 2 | Wheel speed | Trunk antenna power |
| 9 | - | Driver toggle button | Bumper antenna power |
| 10 | RF COM | - | Assistant side antenna power |
| 11 | - | External buzzer | Driver side antenna power |
| 12 | B_CAN high | P position/Clutch switch | SSB LED IGN |
| 13 | B_CAN low | Start feedback | SSB illumination power |
| 14 | V_BAT CPU | Immobilizer antenna ground | - |
| 15 | - | - | Interior antenna #2 ground |
| 16 | Power ground 2 | SSB LED ACC | Interior antenna #1 ground |
| 17 | Starter relay | - | |
| 18 | IGN2 relay | - | |
| 19 | ACC relay | Trunk antenna ground | |
| 20 | - | Bumper antenna ground | |
| 21 | - | Assistant side antenna ground | |
| 22 | - | Driver side antenna ground | |
| 23 | RPM | ||
| 24 | EMS COM | ||
| 25 | SSB switch 1 | ||
| 26 | Assistant toggle button |
