2016 Kia K900 V8FACTORY OEM SERVICE PROCEDURE

Repair Procedures: Installation

WARNING:

Be sure to check the low pressure fuel hose quick-connector (A) is completely connected to the high pressure fuel pump until a confirmation "click" sound is heard.

Fig 1: Checking Low Pressure Fuel Hose Quick-Connector
Courtesy of KIA MOTORS AMERICA, INC.
Be sure to re-check the low pressure fuel hose is completely connected to the high pressure fuel pump by pulling it after connecting.

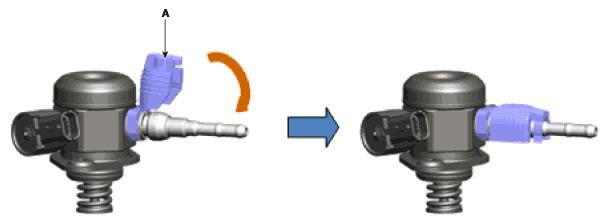

Install the clamp cover (A) to tighten the quick-connector completely.

Fig 2: Tightening Quick-Connector
Courtesy of KIA MOTORS AMERICA, INC.
Be sure to install the high pressure fuel pipe (B) with the specified torques.

Fig 3: Installing High Pressure Fuel Pipe
Courtesy of KIA MOTORS AMERICA, INC.
Because fuel leak may cause fire, securely Inspect leakage of all fuel line connection parts at engine start condition.
