2016 Kia K900 V8FACTORY OEM SERVICE PROCEDURE

Signal Waveform

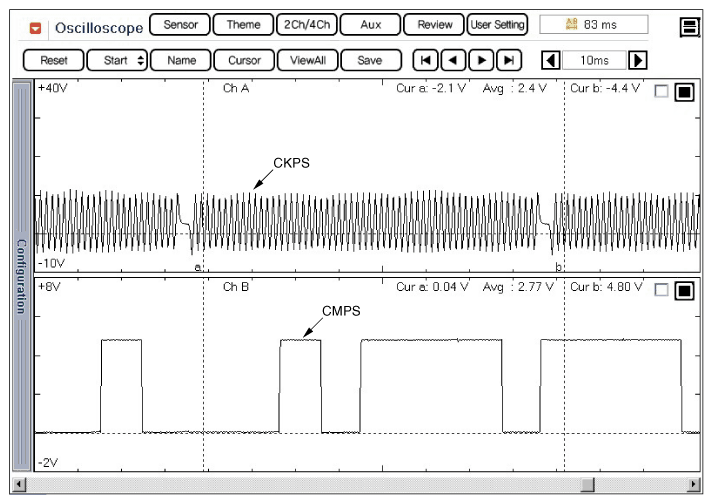

Fig 1: Display - Camshaft Position Sensor Signal Waveform
G11802890Courtesy of KIA MOTORS AMERICA, INC.

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle.
