Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the floor console assembly.
(Refer to "FLOOR CONSOLE ASSEMBLY ")

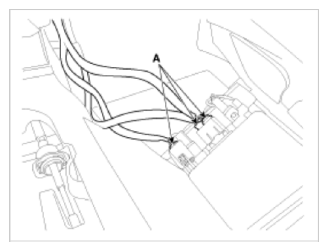

- Disconnect the connectors (A) from the floor console assembly.

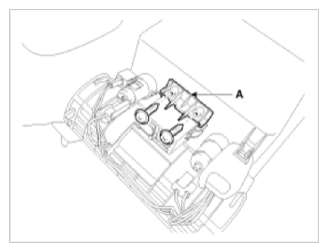

- Remove the multimedia bracket (A) after loosening the mounting screws (2EA).

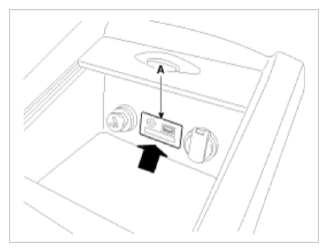

- Remove the multimedia jack (A) after pushing the multimedia jack in the direction of the arrow.
