2016 Kia Forte EXFACTORY OEM SERVICE PROCEDURE
AVN Head Unit Connector (AVN)
WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

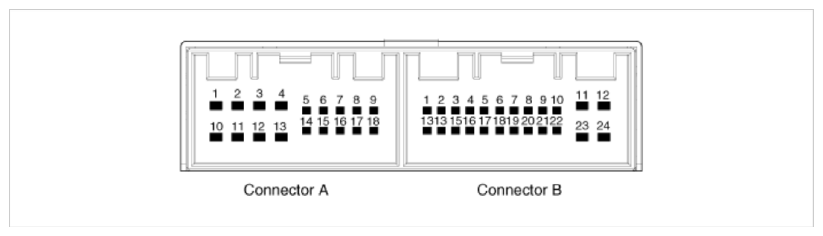

CONNECTOR PIN INFORMATION
| No. - |
Connector A | Connector B |
|---|---|---|
| 1 | Rear left speaker (+) | MM CAN high |
| 2 | Front left speaker (+) | Ground |
| 3 | Front right speaker (+) | Parking (M/T) |
| 4 | Rear right speaker (+) | Steering remocon |
| 5 | Back view ground | - |
| 6 | Back view power | Ignition |
| 7 | ALT L | - |
| 8 | Illumination (+) | AUX R input |
| 9 | Reverse | AUX ground |
| 10 | Rear left speaker (-) | Mic (+) |
| 11 | Front left speaker (-) | ACC |
| 12 | Front right speaker (-) | Battery (+) |
| 13 | Rear right speaker (-) | MM CAN low |
| 14 | Back view video ground | Auto light |
| 15 | Back view video | P position (A/T) |
| 16 | Door unlock | Vehicle speed |
| 17 | Illumination (-) | Remote control ground |
| 18 | Remote antenna | - |
| 19 | - | |
| 20 | AUX detect | |
| 21 | AUX L input | |
| 22 | Mic (-) | |
| 23 | Ground | |
| 24 | Ground |
