Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the heater & A/C control unit.
Refer to " HEATER & A/C CONTROL UNIT (MANUAL) "
Refer to "HEATER & A/C CONTROL UNIT (DATC) "
- Remove the floor console assembly.

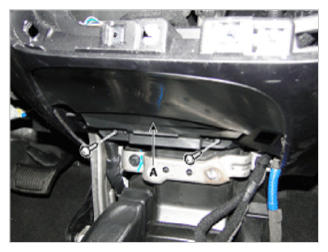

- Remove the center lower cover (A) after loosening the screws.

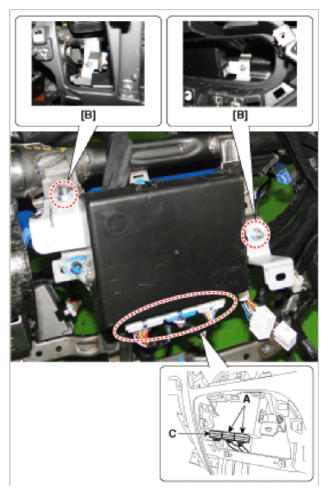

- Remove the BCM unit. (in the order as below)
- Disconnect the connectors (A) from the BCM unit.
- Loosen the mounting nuts (B).
- Remove the BCM unit (D) after disconnecting the connector (C) from the BCM unit.
