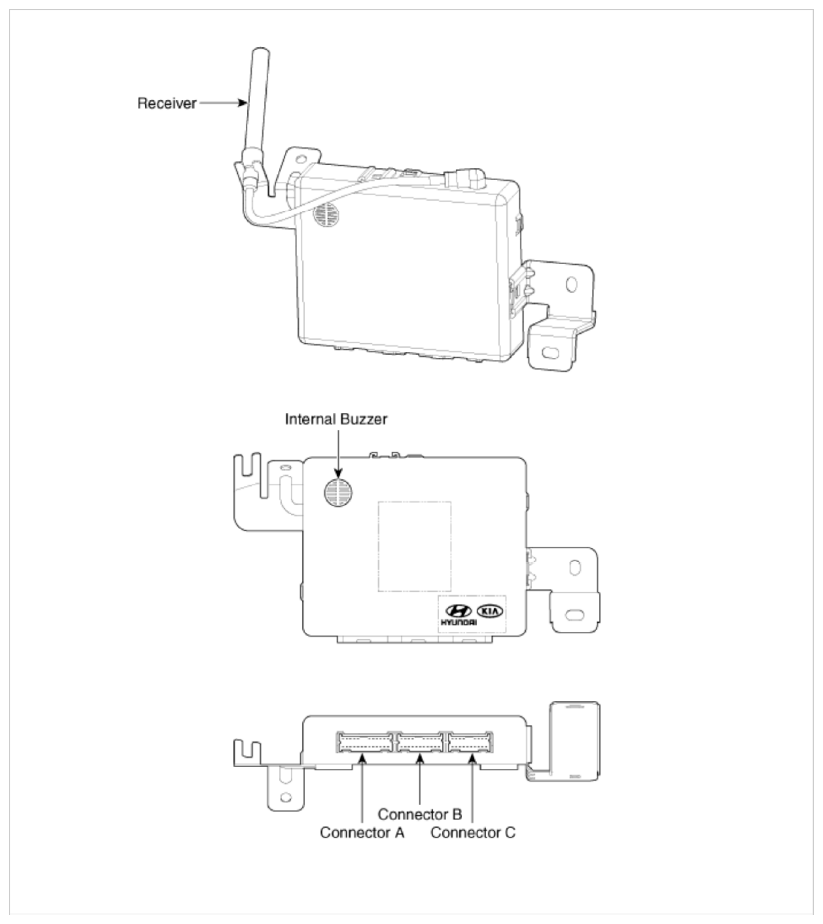

Components And Components Location: Components
*Internal Buzzer: Parking assist system buzzer
| No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Battery | LIN communication (PAS, RPAS) | Safely power window Enable high |
| 2 | IGN 1 | Air bag switch (option) | MTS Tx |
| 3 | IGN 2 | Front fog lamp switch | Key hole illumination lamp |
| 4 | Brake switch | Sunroof open switch | Room lamp |
| 5 | Wiper mist switch | PAS ON/OFF switch | Puddle lamp |
| 6 | Crash Unlock | Assist MAT switch | Key solenoid |
| 7 | Head lamp low switch | AV TAIL | ATM solenoid |
| 8 | Head lamp high switch | LS CAN High | - |
| 9 | Rear wiper washer switch (5DR only) | LS CAN LOW | - |
| 10 | Rear wiper mist switch (5DR only) | Autolight ground | Security indicator |
| 11 | Rear fog lamp switch | Autolight signal | PAS switch indicator |
| 12 | Rear wiper INT switch (5DR only) | Autolight power | HS CAN Low |
| 13 | ACC | Autolight switch | HS CAW High |
| 14 | MTS Rx | K-LINE communication | Wiper relay |
| 15 | - | Rear glass heater switch | - |
| 16 | - | Assist seat belt indicator | Burglar horn relay |
| 17 | Wiper washer switch | Rear left seal belt indicator | Rear wiper relay (5DR only) |
| 18 | Wiper INT Switch | Rear center seal bell indicator | Power ground |
| 19 | PAS/RPAS Switch (Option) | Head lamp low signal | |
| 20 | Wiper INT volume | Rear right seat belt indicator | |
| 21 | Key IN switch | ||
| 22 | Tail lamp switch | ||
| 23 | Key interlock switch | ||
| 24 | Signal ground |
