2015 Kia Soul EV +

Smart Key Code Saving

2015 Kia Soul EV +SECTION Smart Key Code Saving
  1. Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, and turn the power on GDS.
    Fig 1: Driver Side Crash Pad Lower Panel
    G10744810Courtesy of KIA MOTORS AMERICA, INC.
  2. Select the vehicle model and then perform Smart Key Code Saving  "Smart key code saving".

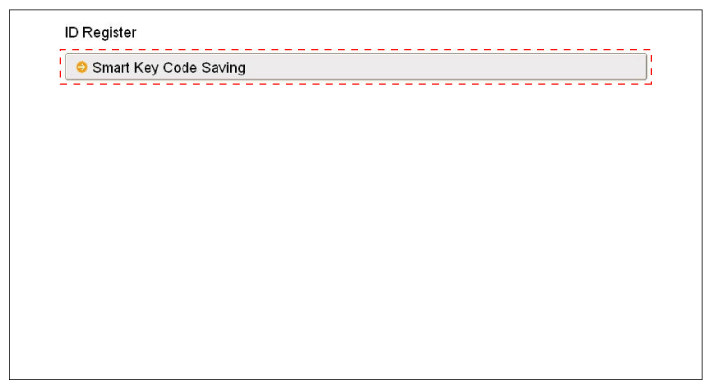

    Fig 2: Screen Display - ID Register
    G10744811Courtesy of KIA MOTORS AMERICA, INC.
  3. After selecting "Smart key teaching" menu, press the "ENTER" button to display the following screen.

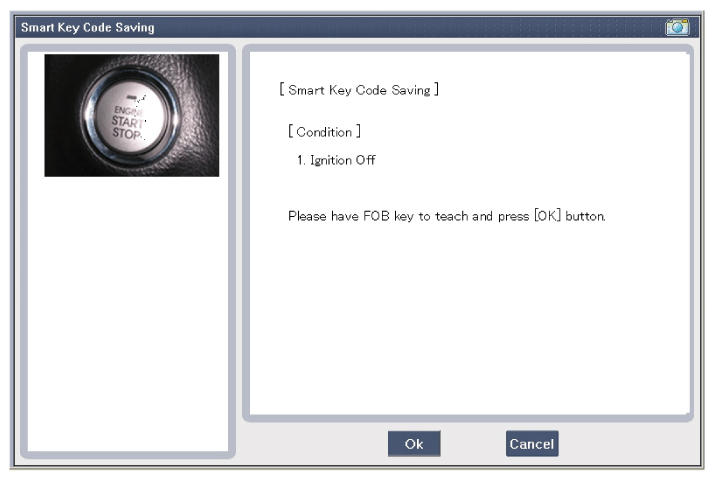

    Fig 3: Screen Display - Smart Key Code Saving
    G10744812Courtesy of KIA MOTORS AMERICA, INC.
  4. After pushing the SSB with the teaching key, press "OK" button.
  5. Input the "Pin code" for first key teaching.

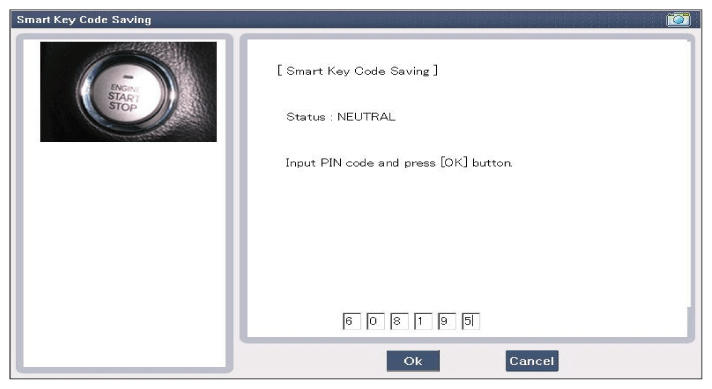

    Fig 4: Screen Display - Smart Key Code Saving (Neutral) (1 Of 2)
    G10744813Courtesy of KIA MOTORS AMERICA, INC.
