Rear Door Lock Module Inspection
- Remove the rear door trim.
(Refer to Body - "REAR DOOR TRIM ")
- Remove the rear door module.
(Refer to Body - "REAR DOOR MODULE ")
- Disconnect the connectors from the actuator.

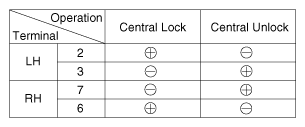

- Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
[Central Lock]

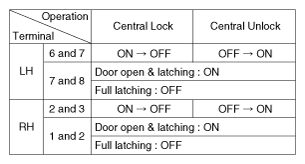

- Check for continuity between the terminals in each switch position according to the table.
