2015 Kia Soul Base, Automatic TransFACTORY OEM SERVICE PROCEDURE

Smart Key Code Registration (Using GDS)

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
    Fig 1: Crash Pad Lower Panel Of Driver Side
    G10744798Courtesy of KIA MOTORS AMERICA, INC.
  2. Select the vehicle model and then perform Smart Key Code Saving  "CODE SAVING".

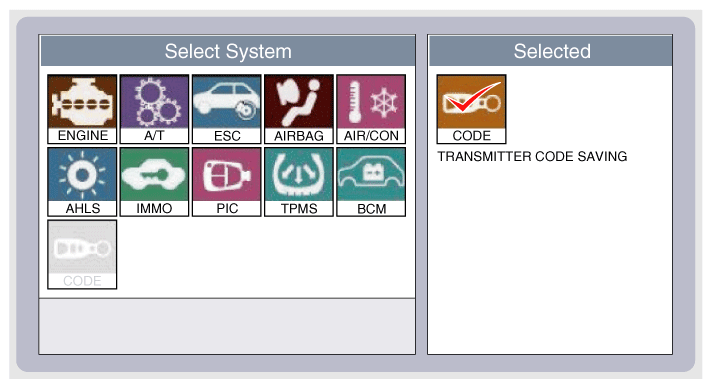

    Fig 2: Screen Display - Transmitter Code Saving
    G10744799Courtesy of KIA MOTORS AMERICA, INC.
  3. After selecting "CODE SAVING" menu, press the "ENTER" button to display the following screen.

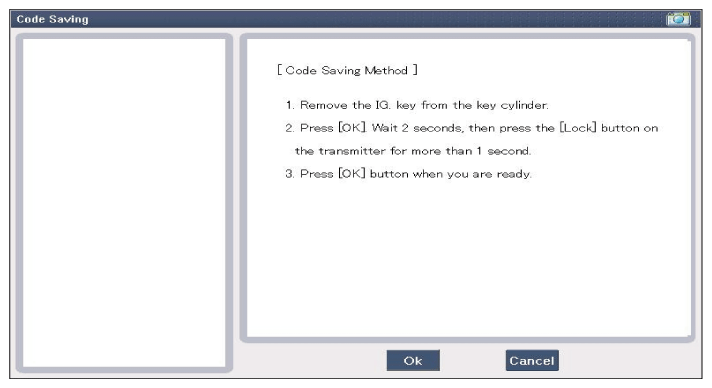

    Fig 3: Screen Display - Code Saving (1 Of 10)
    G10744800Courtesy of KIA MOTORS AMERICA, INC.
  4. After pushing the SSB to "OFF", push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

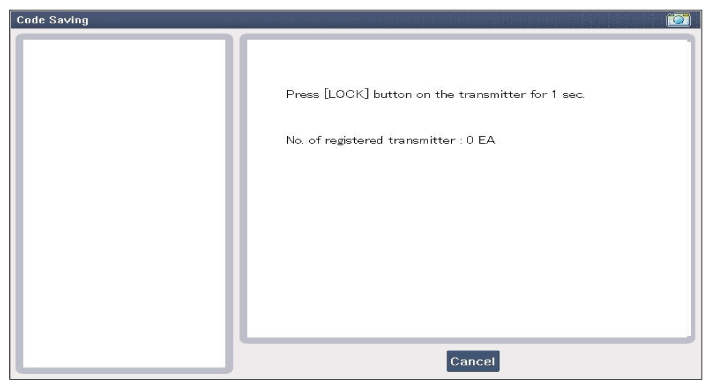

Fig 4: Screen Display - Code Saving (2 Of 10)
G10744801Courtesy of KIA MOTORS AMERICA, INC.
