Description And Operation: Description

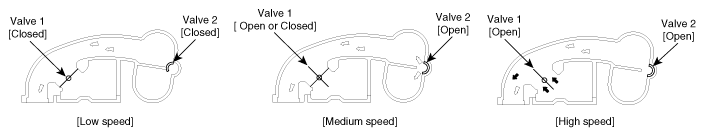

Variable Intake manifold Solenoid (VIS) valves are installed on the intake manifold (VIS Valve 1) and the surge tank (VIS Valve 2). VIS valves 1 and 2 control vacuum modulators that activate valves in the intake manifold and the surge tank. These valves are opened or closed by ECM according to engine condition (Refer to below table).
| Engine condition | VIS valve 1 | VIS valve 2 | Operation |
|---|---|---|---|
| Intake Manifold | Surge Tank | ||
| Low speed | Closed | Closed | Increasing engine performance in low engine speed by reducing intake interference among cylinders |
| Medium speed | Open or Closed | Open | Increasing intake efficiency |
| High speed | Open | Open | Minimizing intake resistance by shortening intake manifold length and increasing area of air entrance |
