2015 Kia Optima SXFACTORY OEM SERVICE PROCEDURE

Power Window Main Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim panel.
Proceed to FRONT DOOR .
Disconnect the connector from the switch.

Fig 1: Power Window Main Switch Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

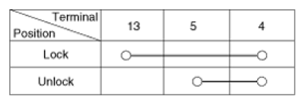

Fig 2: Power Window Main Switch Terminal Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
