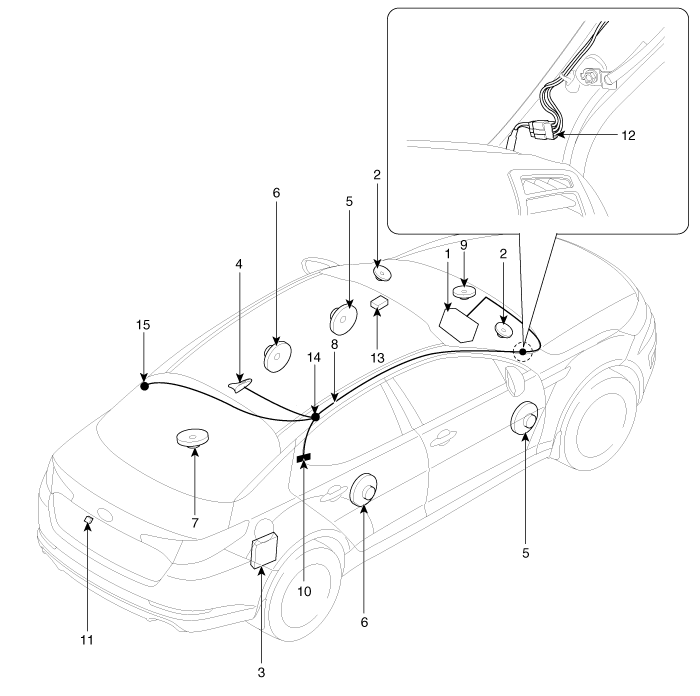

Components Location
| 1. AVN (A/V & Navigation head unit) | 8. Antenna feeder cable |
| 2. Mid-range speaker | 9. Center speaker |
| 3. External amplifier | 10. Glass antenna (Radio) |
| 4. Roof antenna (GPS + SDARS) | 11. Back view camera |
| 5. Front door speaker | 12. Feeder cable joint connector |
| 6. Rear speaker | 13. Hands free MIC (Built in OHC) |
| 7. Woofer speaker | 14. Extension & Feeder cable joint connector |
| 15. Glass antenna (FM2) |
* SDARS : Satellite Digital Audio Radio Service
