Ground Circuit Inspection
- Ignition "OFF".
- Disconnect HO2S connectors.

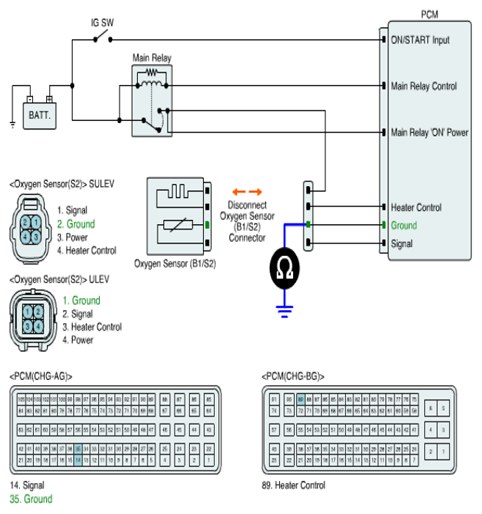

- Measure resistance between ground terminal of HO2S (B1S2) harness connector and chassis ground.
Specification :Β Approx. 0Ξ©
- Is resistance within the specification?
YESΒ
- Go to "SIGNAL CIRCUIT INSPECTIONΒ " procedure.
NOΒ
- Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIRΒ " procedure.NOTE: HO2S must have a clean air reference to function properly. The air is obtained by way of the sensor wire(s). Do not attempt to repair the wire(s), connector, or the terminals.
