2015 Kia Optima HybridFACTORY OEM SERVICE PROCEDURE

Connector Inspection Procedure

Handling of Connector
1. Never pull on the wiring harness when disconnecting connectors.

  Fig 1: Caution For Handling Connector
  Courtesy of KIA MOTORS AMERICA, INC.
2. When removing the connector with a lock, press or pull locking lever.

  Fig 2: Pressing Connector Locking Lever
  Courtesy of KIA MOTORS AMERICA, INC.

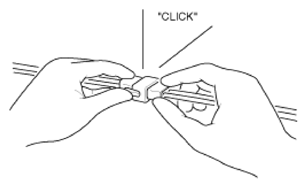

3. Listen for a click when locking connectors. This sound indicates that they are securely locked.

  Fig 3: Locking Connectors
  Courtesy of KIA MOTORS AMERICA, INC.
4. When a tester is used to check for continuity, or to measure voltage, always insert tester probe from wire harness side.

  Fig 4: Caution For Inserting Tester Probe
  Courtesy of KIA MOTORS AMERICA, INC.
5. Check waterproof connector terminals from the connector side. Waterproof connectors cannot be accessed from harness side.
Fig 5: Caution For Checking Waterproof Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
