2015 Kia K900 V8FACTORY OEM SERVICE PROCEDURE

Monitor GDS Data

  1. Vehicle Parked & Ignition ON.
  2. Connect GDS and select "DTC Analysis" mode.
  3. Click "DTC Status" on the "Diagnostic Trouble Codes (DTC)"  menu bar to see DTC's information.
  4. Confirm that "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
  5. Read "DTC Status" parameter.

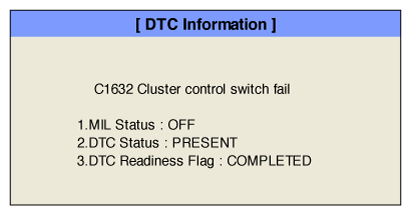

    Fig 1: Scantool Display - DTC Information
    G10717702Courtesy of KIA MOTORS AMERICA, INC.
  6. Is parameter displayed "Present fault"?

    YES

    NO

    • Fault is intermittent caused by poor contact in the sensor's and/or SCC's connector or was repaired and SCC memory was not cleared. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
