Description And Operation: Description
- Power Seat Module (PSM)
- Main features
Item Description Installation location Lower section of the driver side seat Component configuration - Embedded with CAN Communication IC
- Seat memory save and recall check buzzer embedded
Main features - Manual function (manual control through switch operation)
- Memory switch can store and recall seat positions for 2 drivers
- Out synchronization (can be activated/deactivated via USM function or scanner)
- Internal buzzer control by save & recall
- Headrest SW, slide, and recline limit switch applied
- B+ recall
- Added limit setting mode using the scanner

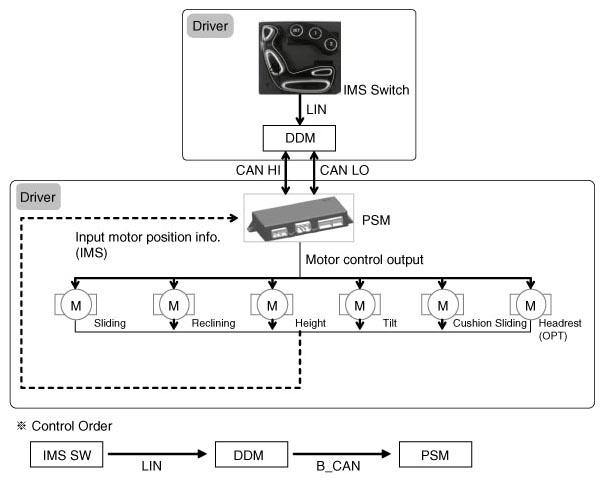

- Power seat signal flow
- For detail information about circuit diagram, refer to the
power window switch.
(Refer to IMS (Integrated Memory System) - "MEMORY POWER SEAT UNIT ")
- Main features
