2015 Kia Forte5 EX
Smart Key Unit
2015 Kia Forte5 EXSECTION Smart Key Unit
- Disconnect the negative (-) battery terminal.
- Remove the main crash pad assembly.
(Refer to "MAIN CRASH PAD ASSEMBLY ")

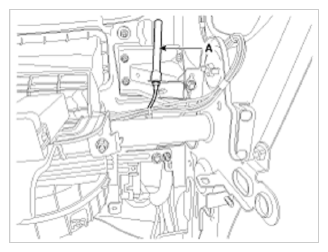

- Remove the RF receiver (A) after loosening a nut.

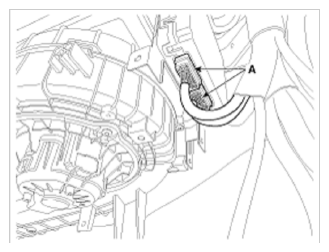

- Disconnect the SMK connectors (A) from the SMK unit.

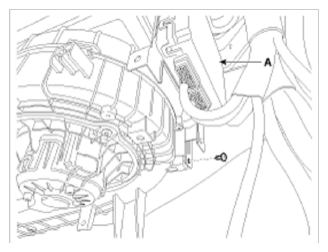

- Remove the smart key unit (A) with loosening the nut and screw.
