2015 Kia Cadenza LimitedFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Removal

  1. Turn the ignition switch off and disconnect the battery negative (-) cable.
  2. Disconnect the injector drive box (IDB) connector (A).

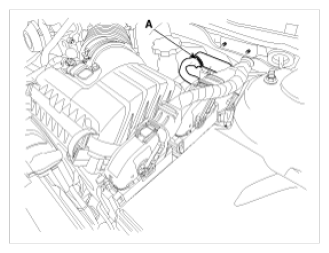

    Fig 1: Identifying Injector Drive Box Connector
    G09751248Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the air cleaner assembly.

    (Refer to "AIR CLEANER ")

  4. Remove the main wiring harness (B) after removing the nut (A).

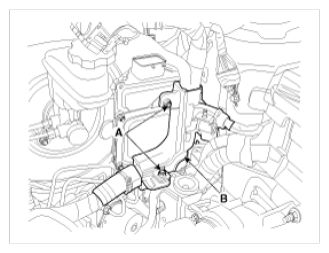

    Fig 2: Identifying Main Wiring Harness And Mounting Nut
    G09751249Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the IDB bracket assembly (B) after removing the bolts (A).

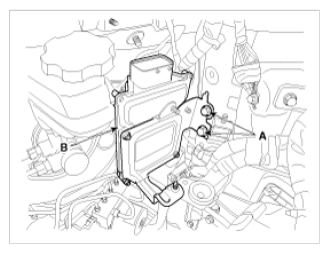

    Fig 3: Identifying IDB Bracket Assembly And Mounting Bolts
    G09751250Courtesy of KIA MOTORS AMERICA, INC.
  6. After removing the installation bolts (A), remove the IDB from the bracket.

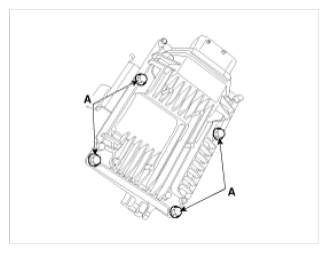

    Fig 4: Identifying IDB And Installation Bolt
    G09751251Courtesy of KIA MOTORS AMERICA, INC.
