WARNING: In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Release the residual pressure in fuel line (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
WARNING: When removing the fuel pump fuse, a Diagnostic Trouble Code (DTC) may occur.
Delete the code with the GDS after completion of "Release Residual Pressure in Fuel Line" work.
Remove the high pressure fuel pump form
Disconnect the fuel pressure control valve connector (A).

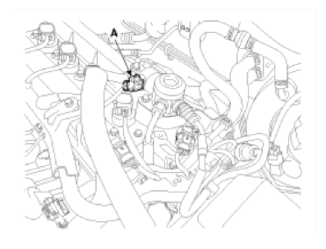

Fig 1: Identifying Fuel Pressure Control Valve Connector
Courtesy of KIA MOTORS AMERICA, INC.
Open the low pressure fuel tube clip (A).

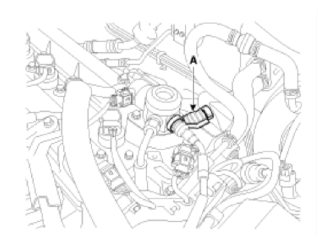

Fig 2: Identifying Low Pressure Fuel Tube Clip
Courtesy of KIA MOTORS AMERICA, INC.
Release the low pressure fuel quick-connector (A) using the clip remover (B).

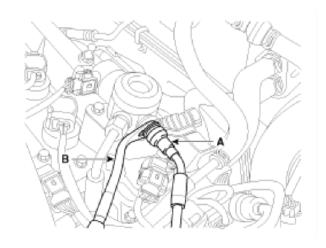

Fig 3: Removing Low Pressure Fuel Quick-Connector Using Clip Remover
Courtesy of KIA MOTORS AMERICA, INC.
