Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Release the residual pressure in fuel line.
(Refer to RELEASE RESIDUAL PRESSURE IN FUEL LINE )
- Remove the delivery pipe & injector assembly
(Refer to DELIVERY PIPE )

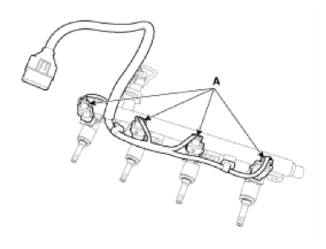

- Disconnect the injector connectors (A)

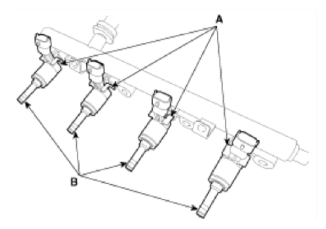

- Remove the fixing clip (A), and then and then separate the injector (B) from the delivery pipe.
