2014 Kia Soul Base, Standard TransFACTORY OEM SERVICE PROCEDURE
ETC (Electronic Throttle Control) System: Specification

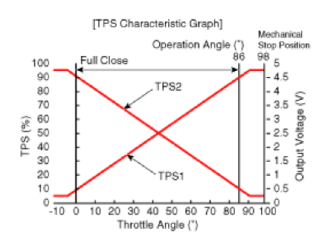

TPS1 SPECIFICATION
| Item | Opening Percentage (%) | Output Voltage (V) [Vref = 5V] |
|---|---|---|
| C.T | 7 ~ 13 | 0.35 ~ 0.65 |
| W.O.T | 88.6 ~ 94 | 4.43 ~ 4.70 |
TPS2 SPECIFICATION
| Item | Opening Percentage (%) | Output Voltage (V) [Vref = 5V] |
|---|---|---|
| C.T | 87 ~ 93 | 4.35 ~ 4.65 |
| W.O.T | 6 ~ 11.4 | 0.3 ~ 0.57 |
ETC MOTOR SPECIFICATION
| Item | Specification |
|---|---|
| Coil Resistance (Ξ©) | 0.3 ~100 [20Β°C (68Β°F)] |
