Removal and Installation
- Remove the engine cover.
- Drain the engine coolant.
(Refer to "COOLANT ")
- Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")

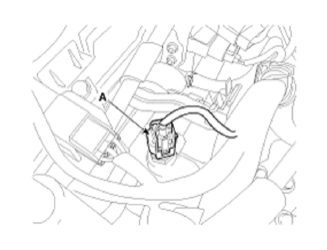

- Disconnect the water temperature sensor connector (A).
- Disconnect the radiator upper hose and the heater hose from the water temperature control assembly.

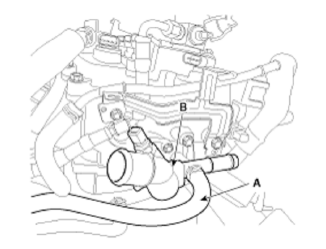

- Disconnect the water hose (A) and then remove the water temperature control assembly (B) with the O-ring.
Tightening torque:
9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
- Install in the reverse order of removal.NOTE:
- Install a new O-ring when replacing the water temperature control assembly.
- Clean the surface of the new O-ring, wet it with water and then install it.
- Fill the engine coolant.
(Refer to "COOLANT ")
- Start the engine and check for leaks.
