2014 Kia Soul Base, Standard TransFACTORY OEM SERVICE PROCEDURE

R-11: Check again after replacing the AVN H/U

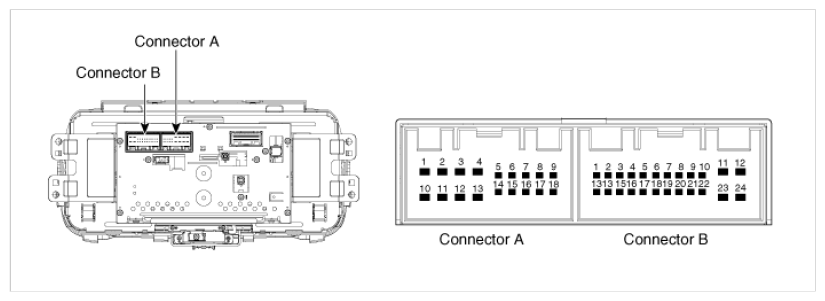

Fig 1: Identifying AVN H/U Connectors

Courtesy of KIA MOTORS AMERICA, INC.

Removed the AVN H/U

Go to step 1

Check the input signal of illumination (+)

Tester Connection	Condition	Specified Condition
CON-A8 ↔ GND	Always	9~16 V

Check the vehicle wiring

Go to step 2

Check the illumination (-) input signal using the oscilloscope

Tester Connection	Condition	Specified Condition
CON-A17 ↔ GND	Always	Check the PWM waveform

Check the vehicle wiring and cluster PWM output

Go to step 3

Check the vehicle illumination control unit
