2014 Kia Sorento EX, FWDFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Removal

Disconnect the negative(-) battery terminal.
Remove the crash pad lower panel (A).
(Refer to "CRASH PAD LOWER PANEL REPLACEMENT ")

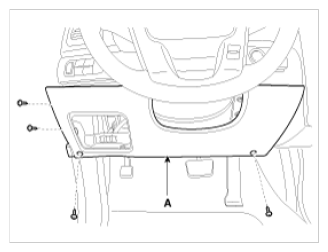

Fig 1: Identifying Crash Pad Lower Panel
Courtesy of KIA MOTORS AMERICA, INC.
Remove the start/stop button cover (A) after loosening the mounting screw.

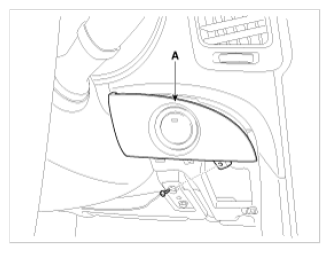

Fig 2: Identifying Start/Stop Button Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A).

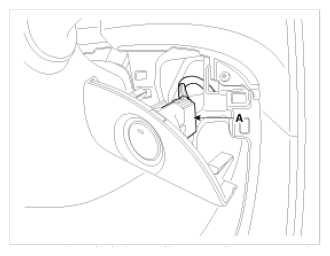

Fig 3: Identifying Start/Stop Button Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the start/stop button (A) after loosening the mounting screws.

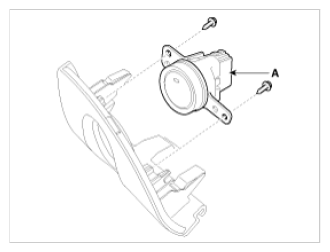

Fig 4: Identifying Start/Stop Button
Courtesy of KIA MOTORS AMERICA, INC.
