2013 Kia Soul !FACTORY OEM SERVICE PROCEDURE

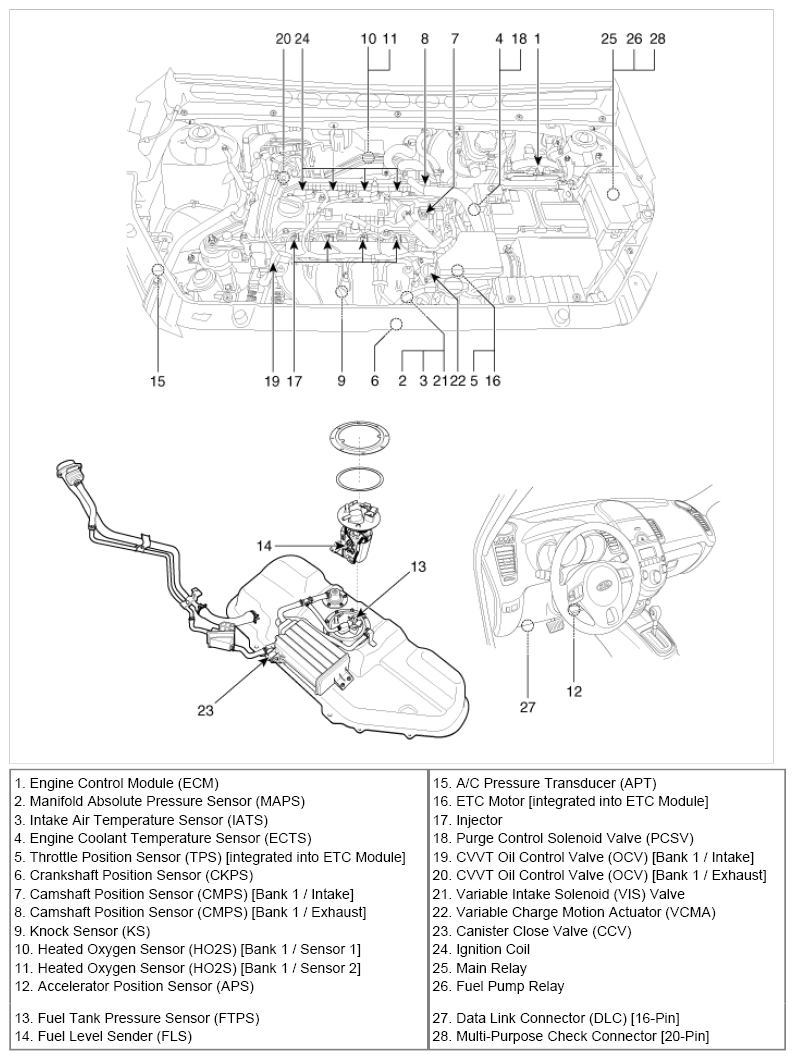

Components Location
| 1. Engine Control Module (ECM) | 2. Manifold Absolute Pressure Sensor (MAPS) 3. Intake Air Temperature Sensor (IATS) |
|---|---|
| 4. Engine Coolant Temperature Sensor (ECTS) | 5. Throttle Position Sensor (TPS) 16. ETC Motor |
| 6. Crankshaft Position Sensor (CKPS) | 7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake] 8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] |
| 9. Knock Sensor (KS) | 10. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] |
| 11. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] | 12. Accelerator Position Sensor (APS) |
| 13. Fuel Tank Pressure Sensor (FTPS) | 14. Fuel Level Sender (FLS) |
| 15. A/C Pressure Transducer (APT) | 17. Injector 24. Ignition Coil |
| 18. Purge Control Solenoid Valve (PCSV) | 19. CVVT Oil Control Valve (OCV) [Bank 1 / Intake] |
| 20. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust] | 21. Variable Intake Solenoid (VIS) Valve |
| 22. Variable Charge Motion Actuator (VCMA) | 23. Canister Close Valve (CCV) |

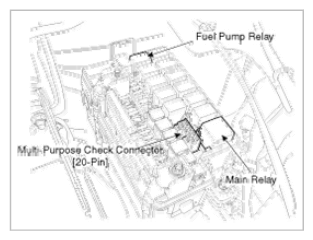

| 25. Main Relay 26. Fuel Pump Relay 28. Multi-Purpose Check Connector [20-Pin] |
27. Data Link Connector (DLC) [16-Pin] |
