2013 Kia Optima LXFACTORY OEM SERVICE PROCEDURE

Smart Key Code Saving

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating DLC
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "Smart key code saving".

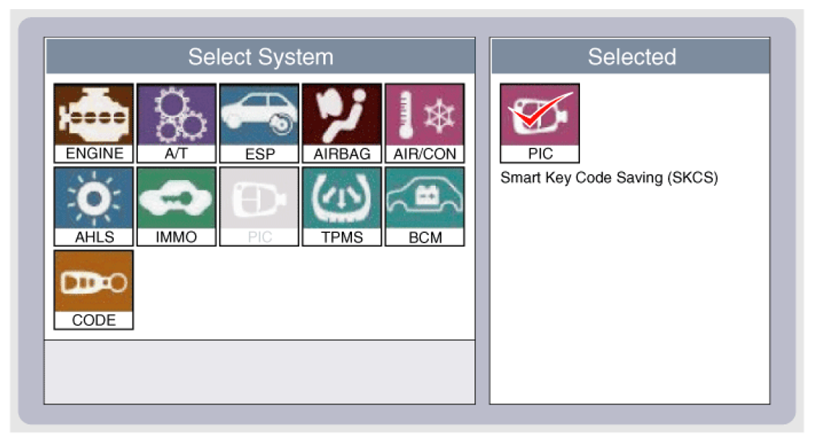

Fig 2: Scantool Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
