2013 Kia Optima LXFACTORY OEM SERVICE PROCEDURE

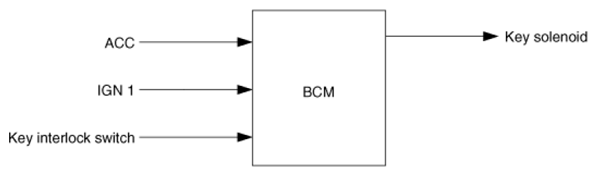

Data Flow
- Key solenoid to the output of the ON KEY to make the subject does not fall. (If IGN1 ON or ACC subject to the key Interlock switch input is OFF.)
- In addition to the above conditions, the KEY OFF key solenoid output to fall out, to make conditions.

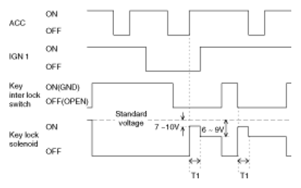

- Key solenoid output OFF -> ON operation, 0.9 sec ~ 1.5 sec for the 7 - 10V and the behavior, then the voltage 6 - 9V to maintain.
T1 : 0.9 ~ 1.5 sec
