2012 Kia Soul Base, StandardFACTORY OEM SERVICE PROCEDURE

Repair procedures: Removal

Remove the shift lever assembly.
(Refer to "SHIFT LEVER " in this group)
Remove the retainer (A) and nuts (B-2ea).

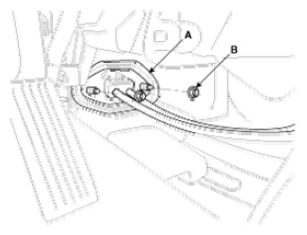

Fig 1: Identifying Retainer And Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the pin (A) and then remove the shift cable & select cable (B).

Fig 2: Identifying Pin And Shift Cable & Select Cable
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable and select cable at cabin room.
