2012 Kia Soul Base, StandardFACTORY OEM SERVICE PROCEDURE
Repair procedures: Removal
WARNING:
In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. Before repairing the high pressure system, be sure to release the residual pressure in fuel line as step 2 in below procedure.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Release the residual pressure in fuel line (Refer to the
"RELEASE RESIDUAL PRESSURE IN FUEL LINE
").CAUTION: When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the GDS after completion of "Release Residual Pressure in Fuel Line" work.
- Remove the delivery pipe & injector assembly (Refer to "DELIVERY PIPE " in this group).

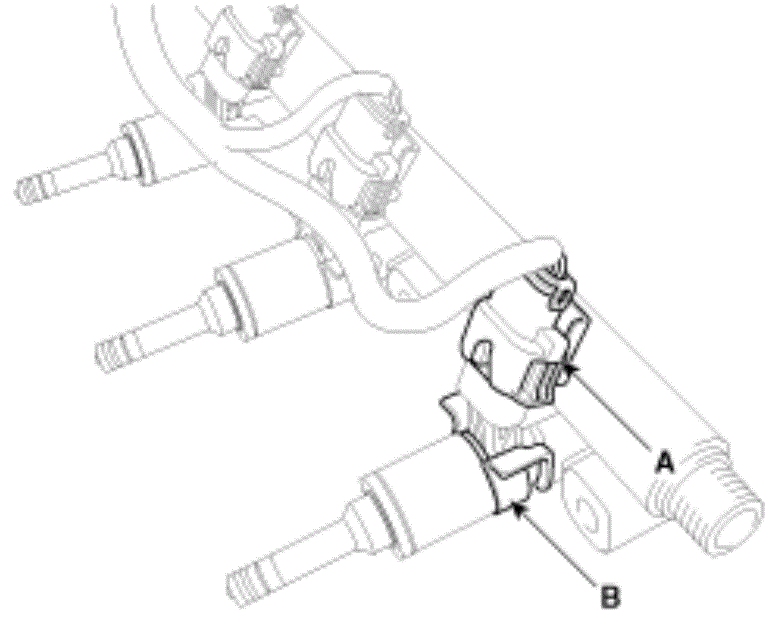

- Remove the connector (A) and the fixing clip (B), and then separate the injector from the delivery pipe.
