Repair procedures: Replacement
- Remove the floor console assembly.
(Refer to "INTERIOR " in BD group.)
- Remove the shift cable (A).

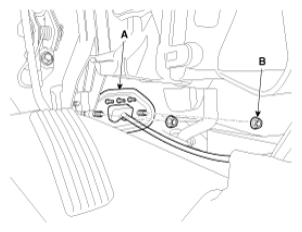

- Remove the retainer (A) by loosening the nut (B-2ea).
Tightening torque:
9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)
- Loosen the nut (C) and then remove the cable (B) from the bracket (A) at transaxle assembly side.
Tightening torque:
9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)
- Remove the shift cable inside of cab.
- Installation is the reverse of removal.NOTE:
- When installing, set room side lever and T/M side lever to N position.
- Adjust the shift lock cable after installing.
(Refer to "SHIFT LOCK CABLE (ADJUST) " in this group)
