2012 Kia Soul Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Smart Key Code Saving
- Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.
- Select the vehicle model and then do "Smart key code saving".

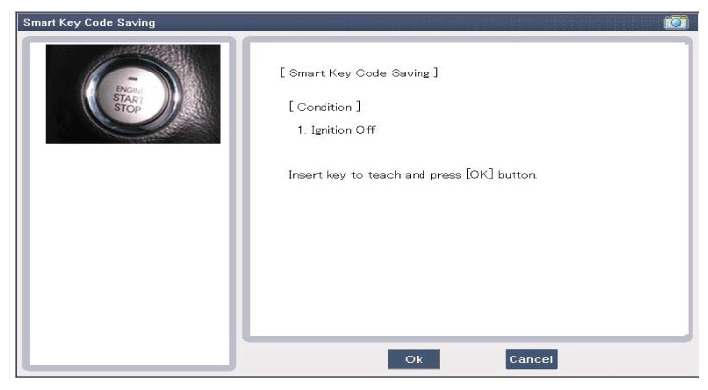

- After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.
- After inserting the teaching key, push "ENTER" key.

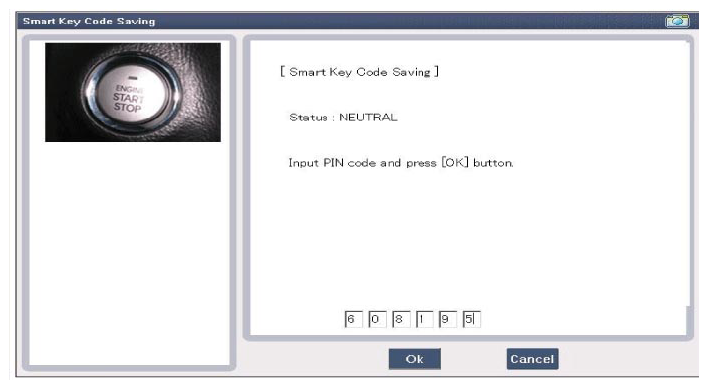

- Input the "Pin code" for first key teaching.
