2012 Kia Soul Base, AutomaticFACTORY OEM SERVICE PROCEDURE

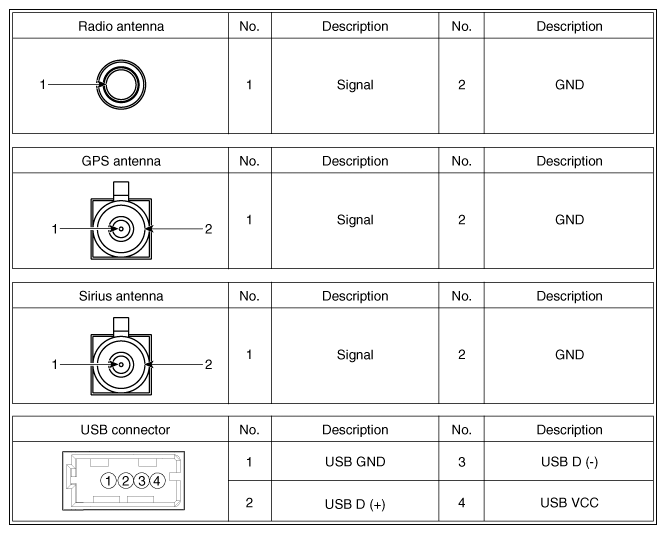

Connector Pin Information
| No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | - | CAN High | GND |
| 2 | Camera video | - | Clock |
| 3 | Camera video GND | - | CD input LED |
| 4 | Camera power GND | Steering remote control | Eject |
| 5 | SPDIF GND | - | - |
| 6 | SPDIF (+) | - | - |
| 7 | ALT L | iPod video | Encoder L CW |
| 8 | Illumination (+) | AUX Audio right | Encoder L CCW |
| 9 | R position | AUX Audio ground | Encoder R CW |
| 10 | - | Mic (+) | Encoder R CCW |
| 11 | Camera power | ACC | Key left |
| 12 | NAVI voice (-) | Battery (+) | Key right |
| 13 | NAVI voice (+) | CAN Low | |
| 14 | - | AV tail | |
| 15 | SPDIF (-) | P position | |
| 16 | Door unlock | Vehicle speed | |
| 17 | Illumination (-) | Steering remote GND | |
| 18 | Antenna power | - | |
| 19 | iPod video GND | ||
| 20 | AUX detect | ||
| 21 | AUX Audio left | ||
| 22 | Mic (-) | ||
| 23 | Ground | ||
| 24 | Ground |
