2012 Kia Soul !FACTORY OEM SERVICE PROCEDURE

Repair procedures: Replacement

Remove the floor console assembly.
(Refer to "CONSOLE ".)
Remove the shift cable (A).

Fig 1: Locating Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.

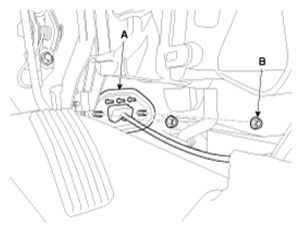

Remove the retainer (A) by loosening the nut (B-2ea).
Tightening torque:

9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)

Fig 2: Identifying Retainer And Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the nut (C) and then remove the cable (B) from the bracket (A) at transaxle assembly side.
Tightening torque:

9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)

Fig 3: Identifying Transaxle Assembly Side Cable, Bracket And Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable inside of cab.
Installation is the reverse of removal.
NOTE:
- When installing, set room side lever and T/M side lever to N position.
- Adjust the shift lock cable after installing.
  (Refer to "SHIFT LOCK CABLE (ADJUST) " in this group)
