2012 Kia Soul !FACTORY OEM SERVICE PROCEDURE

RKE Two Turn Unlock Set Flashing Control Function

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
  1. This function describes the following features:
    1. Management of request for RKE Two Turn Unlock Set/Reset complete flashing by RKE Lock Control Manager and SMK unit.
  2. Function Description
  1. If there is a request for having the Two Turn Unlock Set/Reset flashing by RKE (b_RKETwoTurnSetFlasher = Off→On) or by SMK RKE (C_TwoStepUnlockOption = Off→On), a pattern of Turn left and turn right bulb flashing is performed.
  2. RKE Two Turn Unlock Set/Reset flashing has four times flashing in 2s, each operation has 250ms ON time and 250ms OFF time.

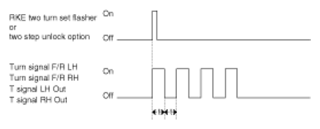

Fig 1: RKE Turn Unlock Set Flashing Control Function Timing Pattern
G07426863Courtesy of KIA MOTORS AMERICA, INC.

T: 250 msec ± 25 msec
