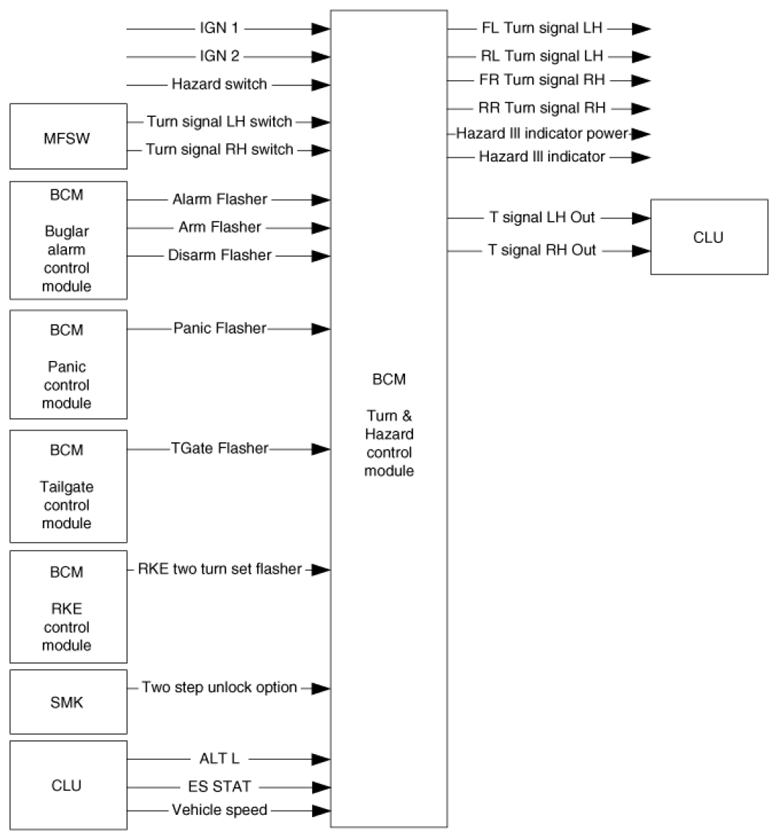

Fig 1: Turn & Hazard Control Flow Diagram

Courtesy of KIA MOTORS AMERICA, INC.

CHARACTERISTIC FUNCTION CHART

Function	Characteristics	Name
Function	Characteristics	Hardware Label	Spec. Designation
Input	Logic	L_IGN2	Ignition 2 Input
		L_HazardSW	Hazard Switch
		L_TurnSigLHSW	Turn Left Signal Switch
		L_TurnSigRHSW	Turn Right Signal Switch
	Analog	A_IGN1	Ignition 1 Input
	CAN Communication	C_TwoStepUnlockOption	SMK RKE Two steps Unlock Mode Setting
		C_ALT_L	Engine is running
		C_ES_STAT	ESS system status
		C_VehicleSpeed	Vehicle speed from Power Train High CAN
	Internal	b_AlarmFlasher	Alarm Flasher Request
		b_ArmFlasher	ARM Flasher Request
		b_DisarmFlasher	DISARM Flasher Request
		b_PanicFlasher	Panic Flasher Request
		b_TGateFlasher	Tailgate Flasher Request
		b_RKETwoTurnSetFlasher	BCM Two steps Unlock Mode Setting
Output	Logic	O_TurnSigFLH	Flasher FLeft Lamp Output
		O_TurnSigRLH	Flasher RLeft Lamp Output
		O_TurnSigFRH	Flasher FRight Lamp Output
		O_TurnSigRRH	Flasher RRight Lamp Output
		V_HazardIllINDPwr	Hazard IND Power Output
		O_HazardIllIND	Hazard IND Output
	CAN Communication	C_TSigLHOut	Turn LH Signal Lamp Out Status for indicator in CLU
	CAN Communication	C_TSigRHOut	Turn RH Signal Lamp Out Status for indicator in CLU
