2012 Kia Soul !FACTORY OEM SERVICE PROCEDURE
Flasher Buzzer Control Function
WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
- To provide an audible feedback to the driver when flasher is active, a Flasher Buzzer is used.

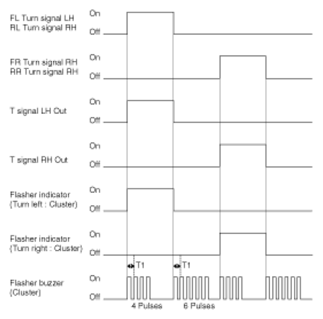

- While Flasher Lamp is operated, the flasher buzzer is activated at the time of Output On/Off transition.
- Flasher Buzzer is controlled by the Cluster.
- BCM turns on/off the turn left or/and turn Right flasher, cluster controls the flasher buzzer following the activation request from BCM.
T1: 2 (kHz), 50% duty
