2012 Kia Soul !FACTORY OEM SERVICE PROCEDURE

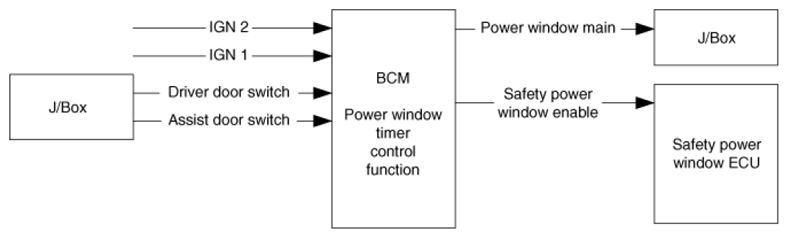

Power Window Control: Notes
WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
CHARACTERISTIC FUNCTION CHART
| Function | Characteristics | Name | |
|---|---|---|---|
| Hardware Label | Spec. Designation | ||
| Input | Logic | L_IGN2 | Ignition 2 Power |
| L_IGN1 | Ignition 1 Input | ||
| CAN Communication | C_DRVDRSW | Driver Door Switch | |
| C_ASTDRSW | Assist Door Switch | ||
| Internal | b_IGN1 | On: A_IGN1 == On || L_IGN2 == On | |
| Off: A_IGN1 == Off&L_IGN2 == Off | |||
| Output | CAN Communication | C_PwdwMain | Power window Timer |
| Logic | O_SafetyPwdwEnable | Safety Power Window ECU Enable Output | |
