2012 Kia Soul !FACTORY OEM SERVICE PROCEDURE
Exterior Lighting Control: Notes
WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

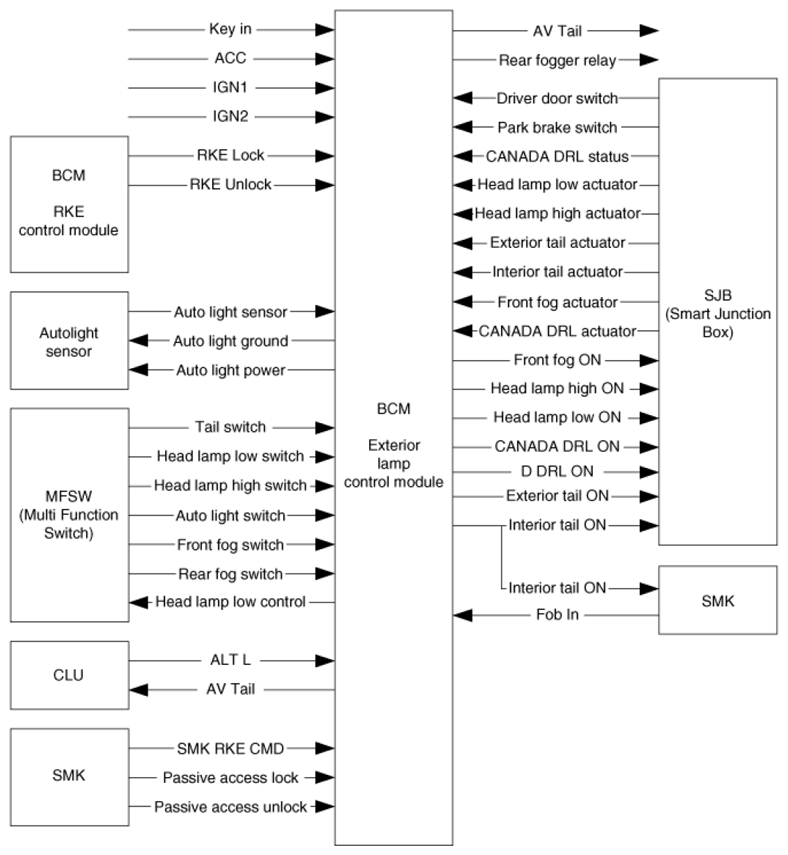

CHARACTERISTIC FUNCTION CHART
| Function | Characteristics | Name | |
|---|---|---|---|
| Hardware Label | Spec. Designation | ||
| Input | Logic | L_KeyIn | Key In signal |
| L_ACC | Accessory Signal | ||
| L_IGN2 | Ignition 2 Power | ||
| L_AutoLightSW | Head Lamp Auto Switch | ||
| L_HeadLampLowSW | Head Lamp Low Switch | ||
| L_TailSW | Tail Lamp Switch | ||
| L_FrontFogSW | Front Fog Switch | ||
| L_HeadLampHighSW | Head Lamp High Switch | ||
| L_RearFogSW | Rear Fog Switch | ||
| Analog | A_AutoLightSnsr | Auto Light Sensor Analog Input | |
| A_IGN1 | Ignition 1 Power | ||
| CAN Communication | C_FobIn | Fob Key Insert State | |
| C_ALT_L | Engine is running | ||
| C_PassiveAccessLock | SMK Passive access lock for door module | ||
| C_PassiveAccessUnlock | PIC Passive access unlock for door module | ||
| C_SMKRKECMD | SMK FOB Keyless Command | ||
| C_DRVDRSW | Driver Door Switch | ||
| C_ParkBrakeSW | Parking Brake Switch | ||
| C_CANADA_DRLSts | CANADA DRL Option | ||
| C_HLampLOW_Act | Head Lamp Low Beam Activity | ||
| C_HLampHIGH_Act | Head Lamp High Beam Activity | ||
| C_EXTTail_Act | External Tail Lamp Activity | ||
| C_INTTail_Act | Internal Tail Lamp Activity | ||
| C_FrontFog_Act | Front Fog Lamp Activity | ||
| C_CANADA_DRL_Act | CANADA DRL Activity (High beam 50%) | ||
| Internal | b_RKELock | Lock Request by RKE in non-SMK Variant | |
| b_RKEUnlock | Unlock Request by RKE in non-SMK Variant | ||
| Output | Logic | O_HeadLampLowCTRL | Head Lamp Low Output Status (Active Low) |
| O_RearFogRLY | Rear Fog Control | ||
| O_AVTail | Auto Light output to AV module | ||
| V_AutoLightPwr | Supplying Power to Auto Light Module | ||
| V_AutoLightGND | Supplying Ground to Auto Light Module | ||
| CAN Communication | C_INTTailON | Internal Tail Lamp ON Command | |
| C_EXTTailON | External Tail Lamp ON Command | ||
| C_HeadLampLowON | Head Lamp Low Command | ||
| C_HeadLampHighON | Head Lamp High Command | ||
| C_FrontFogON | Front Fog Command | ||
| C_CANADA_DRLON | CANADA DRL ON Command (high beam 50%) | ||
| C_AV_Tail | AV Tail | ||
| C_D_DRL_ON | Dedicated DRL Command | ||
