2012 Kia Soul !FACTORY OEM SERVICE PROCEDURE
Defogger Control: Notes
WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

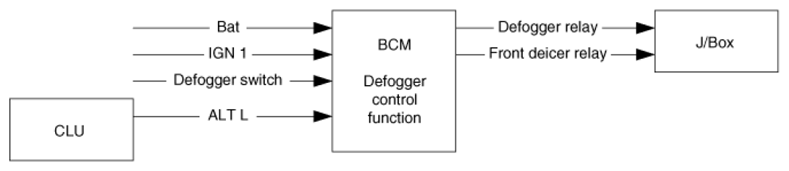

CHARACTERISTIC FUNCTION CHART
| Function | Characteristics | Name | |
|---|---|---|---|
| Hardware Label | Spec. Designation | ||
| Input | Logic | L_DefoggerSW | Defogger Switch Input |
| Analog | A_IGN1 | Ignition 1 Input | |
| V_Bat | Battery Voltage | ||
| CAN Communication | C_ALT_L | Alternator Level (Engine is running) | |
| Output | CAN Communication | C_DefoggerRly | Defogger Relay Control |
| C_FrontDeicerRly | Front Deicer Control | ||
