2012 Kia Rondo (CANADA) V6-2.7LFACTORY OEM SERVICE PROCEDURE
Powertrain Management: Specifications
Specifications
Fuel Delivery System
Sensors
Mass Air Flow Sensor (MAFS)
- Type: Hot-film type
- Specification

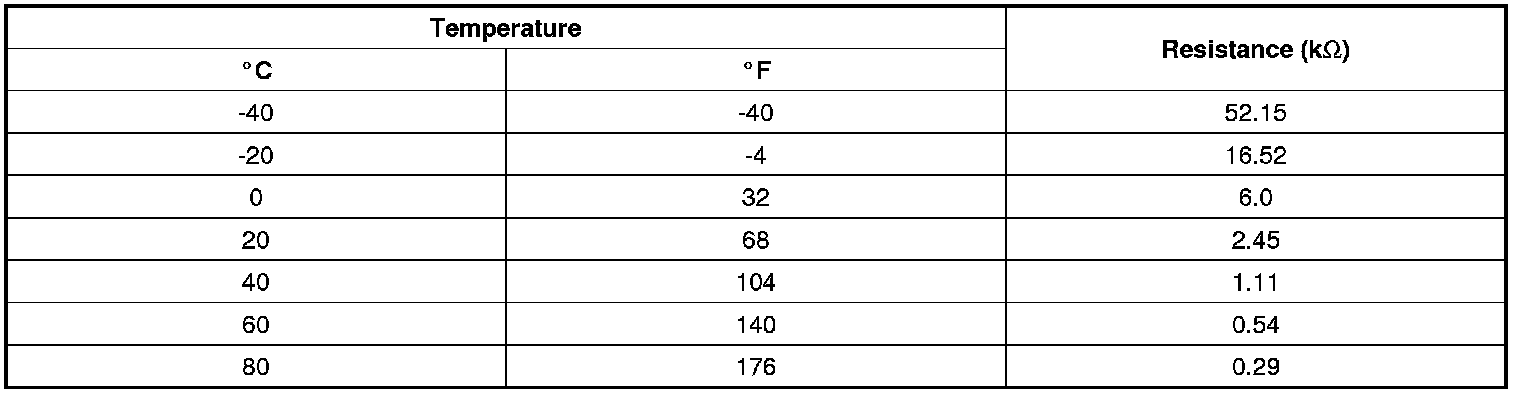

Intake Air Temperature Sensor (IATS)
- Type: Thermistor type
- Specification
Manifold Absolute Pressure Sensor (MAPS)
- Type: Piezo-resistive pressure sensor
- Specification
Engine Coolant Temperature Sensor (ECTS)
- Type: Thermistor type
- Specification

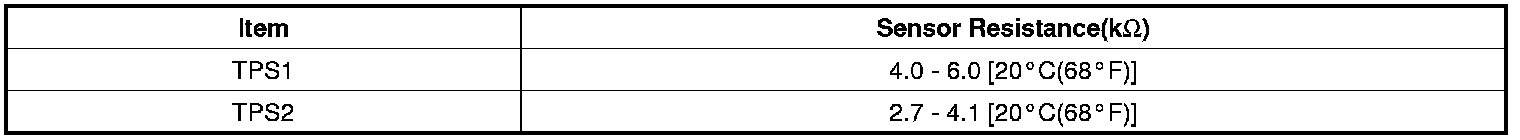

Throttle Position Sensor (TPS) [integrated into ETC Module]
- Type: Variable resistor type
- Specification

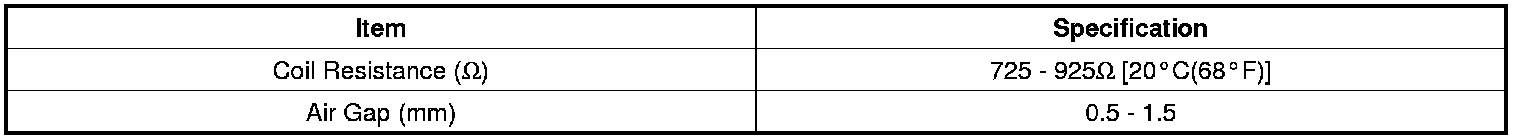

Crankshaft Position Sensor (CKPS)
- Type: Magnetic field sensitive sensor
- Specification
Camshaft Position Sensor (CMPS)
- Type: Hall effect type
- Specification
Knock Sensor (KS)
- Type: Piezo-electricity type
- Specification
Heated Oxygen Sensor (HO2S)
- Type: Zirconia (ZrO2) Type
- Specification
CVVT Oil Temperature Sensor (OTS)
- Type: Thermistor type
- Specification

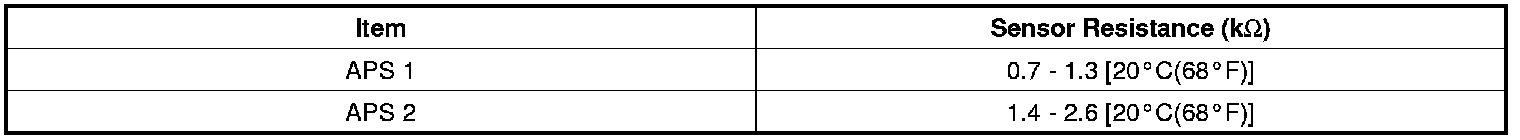

Accelerator Position Sensor (APS)
- Type: Variable resistor type
- Specification
Fuel Tank Pressure Sonsor (FTPS)
- Type: Piezo - Resistivity type
- Specification
Actuators
Injector
- Specification
ETC Motor [integrated into ETC Module]
- Specification
Purge Control Solenoid Valve (PCSV)
- Specification
CVVT Oil Control Valve (OCV)
- Specification
Variable Intake Solenoid (VIS) Valve
- Specification
Ignition Coil
- Type: Stick type
- Specification
Canister Close Valve (CCV)
- Specification

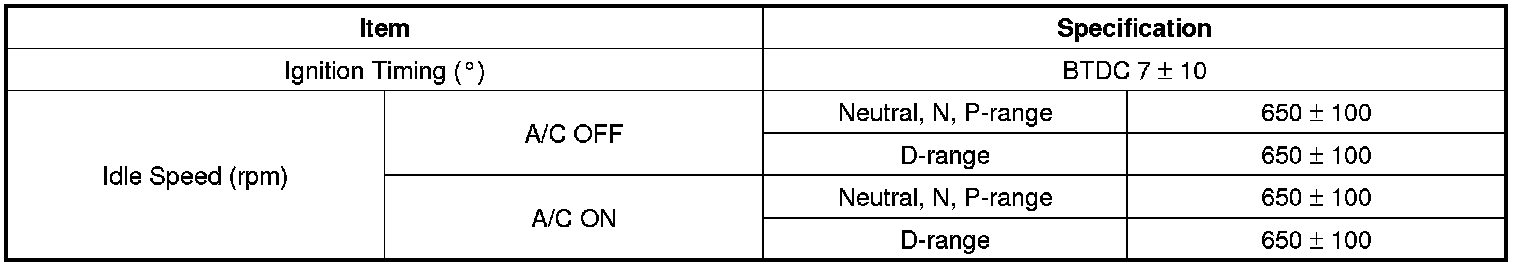

Service Standard
Tightening Torques

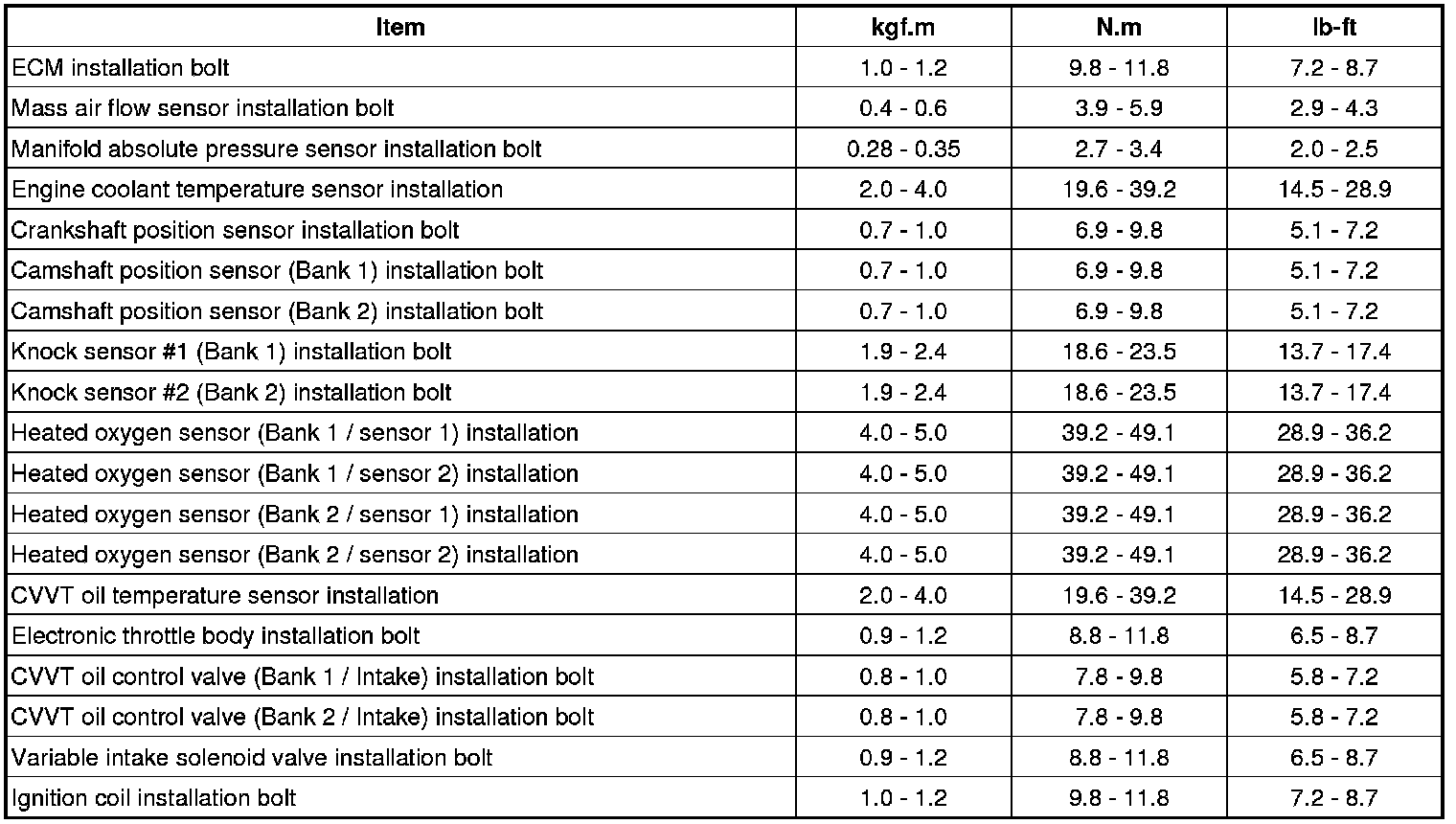

Engine Control System

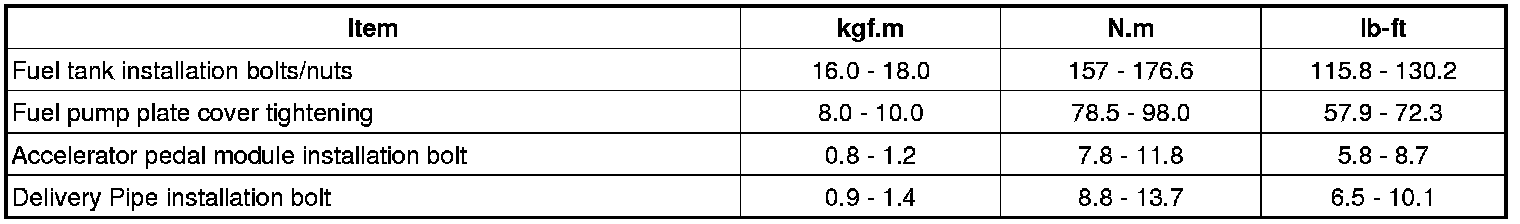

Fuel Delivery System
