2012 Kia Optima SXFACTORY OEM SERVICE PROCEDURE
Trunk Release Relay Control: Overview
WARNING: This page is about a different variant/trim than selected.

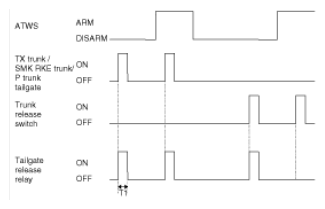

- Trunk Release Relay is ON during T1 when TX Trunk signal received. (NON-SMK)
Trunk Release Relay is ON during T1 when SMK RKE Trunk signal received. (NON-SMK)
- Trunk Release Relay is ON during T1 when Trunk Release switch is OFF->ON.
But, ARMWAIT, ARM, REARM, ALARM mode, the Trunk Release switch input of the output does not.
T1: 500 ± 100msec
