2012 Kia Optima SXFACTORY OEM SERVICE PROCEDURE
Key Operated Warning
WARNING: This page is about a different variant/trim than selected.

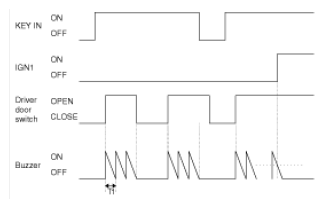

- Int buzzer on every 1sec when driver door switch is on and key ign on.
- Output is off if key ign is in off and driver door switch closed are met during Int buzzer output.
- At IGN1 on, output is off.
Courtesy of KIA MOTORS AMERICA, INC.
T1: 1 ± 0.1sec

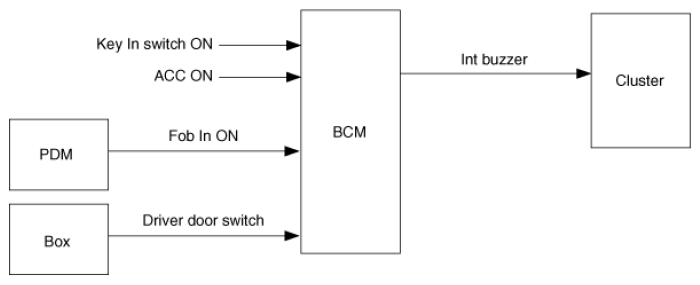

KEY IN ON: Key in switch ON or ACC ON or fob in ON
KEY IN OFF: Key in switch OFF and ACC OFF and fob in OFF
