2012 Kia Optima SXFACTORY OEM SERVICE PROCEDURE

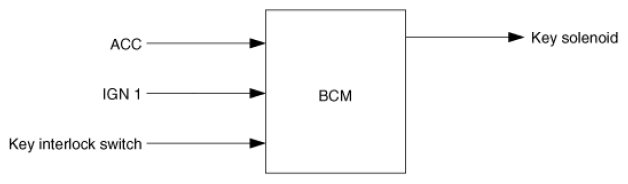

Data Flow
WARNING: This page is about a different variant/trim than selected.
- Key solenoid to the output of the ON KEY to make the subject does not fall. (If IGN1 ON or ACC subject to the key Interlock switch input is OFF.)
- In addition to the above conditions, the KEY OFF key solenoid output to fall out, to make conditions.

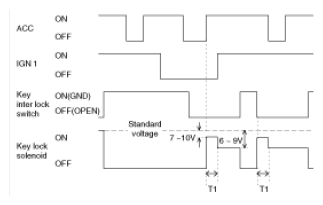

- Key solenoid output OFF -> ON operation, 0.9sec ~ 1.5sec for the 7 - 10V and the behavior, then the voltage 6 - 9V to maintain.
Courtesy of KIA MOTORS AMERICA, INC.
T1: 0.9 ~ 1.5sec
