2012 Kia Optima SXFACTORY OEM SERVICE PROCEDURE

Front Wiper Mist Control

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

In case of IGN2 On (L_IGN2 = ON), if turn on the Wiper Mist Switch (L_WiperMistswitch= On), then Wiper is controlled, by switch on time.
Mist operation does not work at Wiper Washer.

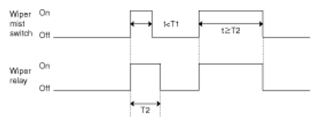

Fig 1: Front Wiper Mist Control Timing Pattern

Courtesy of KIA MOTORS AMERICA, INC.

T1: One wiping, T2: Mist one time
