2012 Kia Optima SXFACTORY OEM SERVICE PROCEDURE
Special Service Tools
SPECIAL SERVICE TOOLS DESCRIPTION CHART
| Item | Illustration | Application |
|---|---|---|
| Fuel Pressure Gauge (09353-24100) |
Measuring the fuel line pressure | |
| Fuel Pressure Gauge Adapter (09353-02100) |
Connection between the high pressure fuel pump and the fuel feed line | |
| Heated Oxygen Sensor Socket Wrench (09392-2H100) |
Removal and installation of the heated oxygen sensor | |
| Torque Wrench Socket (09314-3Q100) |
Removal and installation of the high pressure fuel pipe | |
| Injector Combustion Seal Guide & Sizing tool (09353-2B000) |
Installation of the injector combustion seal | |

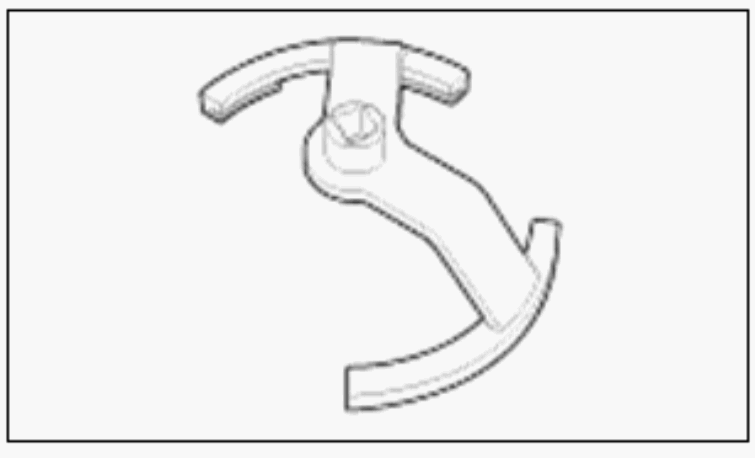

| Fuel Pump Locking Ring Remover (09310-2S200) |
Removal and installation of the fuel pump (or sub fuel sender) locking ring *Type2 for QF only |
