2012 Kia Optima L4-2.4LFACTORY OEM SERVICE PROCEDURE
System Specifications
Specifications
VFS: Variable Force Solenoid
Sensors

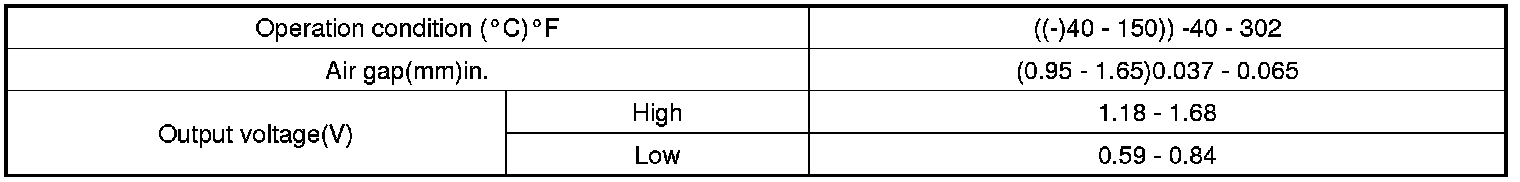

Input Speed Sensor
- Type: Hall effect sensor
- Specifications
Output Speed Sensor
- Type: Hall effect sensor
- Specifications
Oil Temperature Sensor
- Type: Negative thermal coefficient type
- Specifications
Inhibitor Switch
- Type: Combination of output signals from 4 terminals
- Specifications
Solenoid Valves

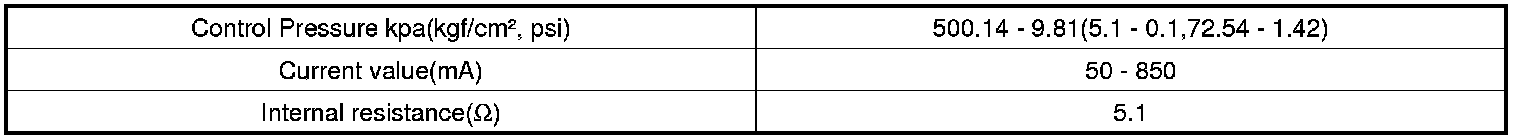

Direct control VFS[26/B, T/CON]
- Control type : Normal low type
Direct control VFS[UD/B, OD/C, 35R/C]
- Control Type : Normal high type
Line Pressure Control VFS
- Control type : Normal high type
ON/OFF Solenoid Valve(SS-A, SS-B)
- Control type : Normal low type
Solenoid Valve Operation Table
X : Connected status
x : Connected at vehicle speed above 8km/h
Tightening Torques
Lubricants
Sealant
Factory Service Tools
