2012 Kia Optima L4-2.4L HybridFACTORY OEM SERVICE PROCEDURE
Drive Motor Control Module: Specifications
System Circuit Diagram
A high-capacity power module is applied to control 2 primary motors using high voltage. The power module is composed of a high-speed switching insulated gate bipolar transistor (IGBT) and a diode circuit. The high voltage battery capacity is about 270V, but to ensure stability and reliability the power module uses high capacity power with a maximum voltage of 650V.
MCU Terminal and Input/ Output signal
MCU Terminal Function

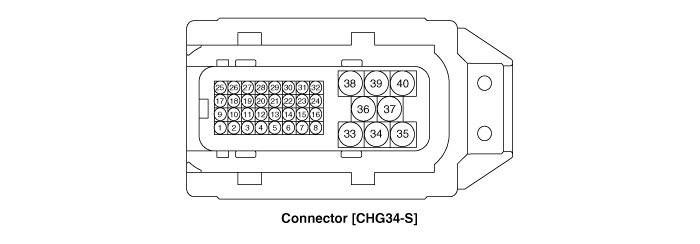

Connector (CHG34-S)
MCU terminal Input/Output signal
