Repair procedures: Removal
- Air cleaner assembly and air duct.
(Refer to "Intake and Exhaust system" in EM group)
- Remove the Hybrid Power Control Unit (HPCU) assembly.
(Refer to "HYBRID CONTROL SYSTEM " in HC group)
- Remove the under cover (A).
Tightening torque:
7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)
- Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug.
(Refer to "AUTOMATIC TRANSAXLE " in this group)
- Remove the ATF warmer.
(Refer to "ATF WARMER " in this group)

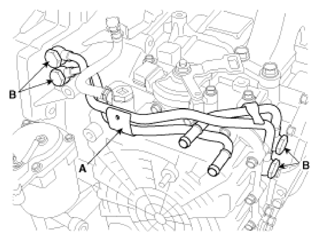

- Remove the AT tube (A) after removing eye bolt (B).
Tightening torque:
42 ~ 48 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 31.4 lb-ft)
- Remove the valve body cover (A) and breather hose clip (B).
Tightening torque:
- 13.8 ~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.1 ~ 11.6 lb-ft)
NOTE: Remove installation bolts in the engine room first and then remove others under the vehicle.
